SV070 Specifications

The SV070 is a 7-inch capacitive touch panel running SENVAS Runtime. It runs Raspberry Pi OS and uses SENVAS Designer for screen development. The tables below list the display, system, connectivity and mounting specifications from the supplied product materials.

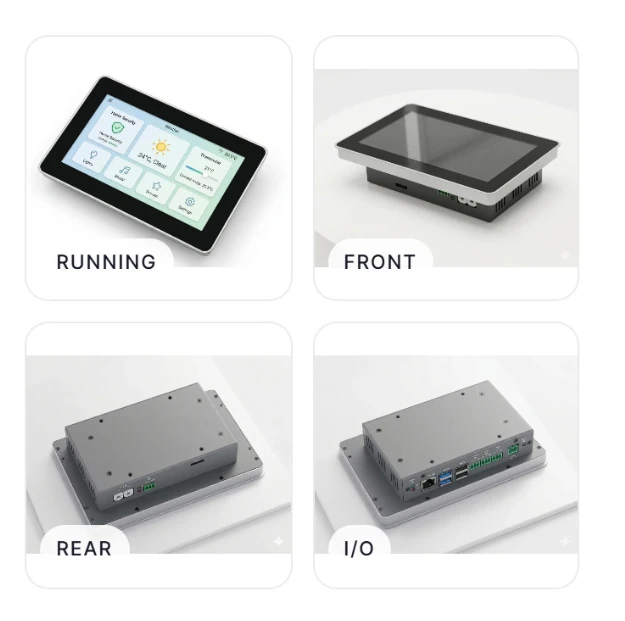

SENVAS touch panel product views

Display and touch

The SV070 has a 1024 × 600 TFT display. Its front dimensions are 188 × 123 mm, and its specified luminance is 400 cd/m².

Item	Specification
Display	7-inch TFT
Resolution	1024 × 600
Colors	16.7M
Active area	154.21 × 85.92 mm
Luminance	400 cd/m²
Contrast ratio	800 : 1
Response time	30 ms
Viewing angles	85° / 85° / 85° / 85°
Backlight	LED
MTBF	More than 30,000 hours, as listed in the LCD specifications

The panel uses multipoint capacitive touch. The touch specifications list transmittance of at least 85% and hardness of 6H. They also specify a COF connection, an I²C controller interface and a Linux driver.

System and software

Item	Specification
CPU	Broadcom BCM2711, quad-core Cortex-A72 at 1.5 GHz
Graphics API	OpenGL ES 3.0
Memory	2 GB LPDDR4
Storage	Micro SD card, 32 GB / 64 GB options
OS	Raspberry Pi OS
Runtime	SENVAS Runtime
Development tool	SENVAS Designer, AI-based UI design

For more about screen development, see the SENVAS HMI technical overview.

Ports and power

Item	Specification
RS-232	1 channel
RS-485	3 channels
Ethernet	1 RJ45 port, 10/100/1000 Mbps
USB 2.0	2 ports
USB 3.0	2 ports
SD slot	1 Micro SD slot
Buzzer	Electronic buzzer
Input voltage	DC 12 to 28 V

The panel provides both Ethernet and serial interfaces. When connecting equipment, check the device’s communication settings and the software’s protocol support as well as the physical interface.

Dimensions and mounting

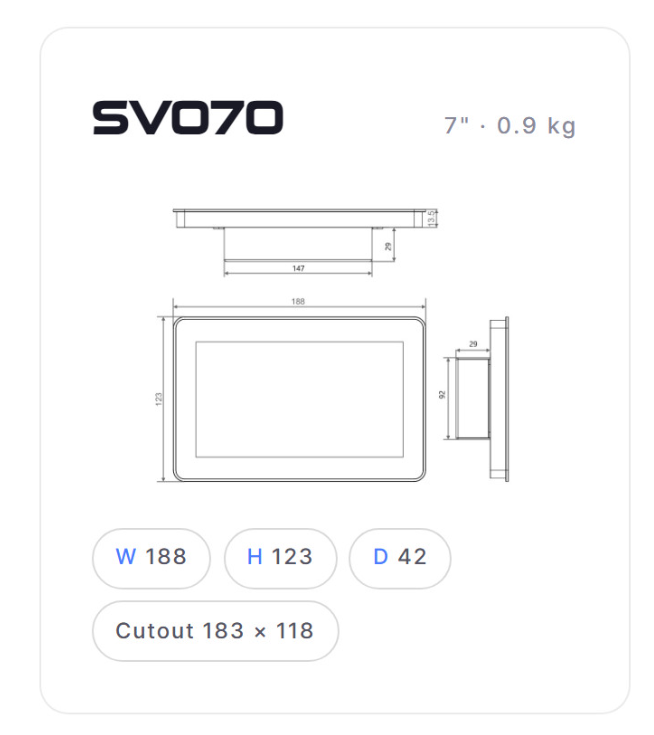

SV070 dimensions and panel cutout

Item	Specification
Overall size, W × H × D	188 × 123 × 42 mm
Weight	Approximately 900 g
Panel cutout, W × H	183 × 118 mm

Use the 183 × 118 mm cutout dimensions for panel machining, rather than the overall dimensions. Allow room for rear connectors and cables in addition to the enclosure’s 42 mm depth.

How it differs from the SV100

The SV070 has a 7-inch, 1024 × 600 display, while the SV100 has a 10.1-inch, 1280 × 800 display. The SV070 has smaller overall and cutout dimensions and weighs approximately 100 g less. Its luminance is 400 cd/m², compared with 250 cd/m² for the SV100. The supplied materials list the same processor, memory, port configuration and input voltage for both models.

See the SENVAS touch panel overview for the product introduction.

Source

This article uses the supplied specification tables and mechanical drawings from the product listing.
