SV100 Specifications

The SV100 is a 10.1-inch capacitive touch panel running SENVAS Runtime. It runs Raspberry Pi OS and uses SENVAS Designer for screen development. The tables below list the display, system, connectivity and mounting specifications from the supplied product materials.

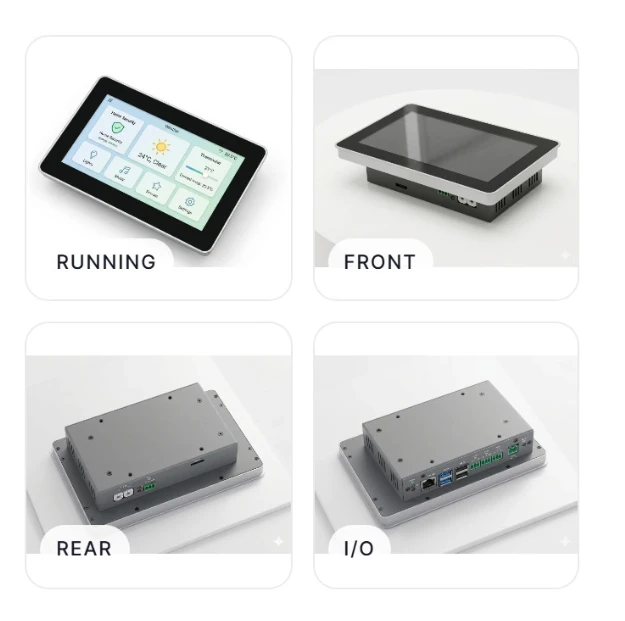

SENVAS touch panel product views

Display and touch

The SV100 has a 1280 × 800 TFT display. Its display is larger and its resolution is higher than the 7-inch SV070. Its specified luminance is 250 cd/m².

Item	Specification
Display	10.1-inch TFT
Resolution	1280 × 800
Colors	16.7M
Active area	216.58 × 135.36 mm
Luminance	250 cd/m²
Contrast ratio	1000 : 1
Response time	30 ms
Viewing angles	80° / 80° / 80° / 80°
Backlight	LED
MTBF	More than 30,000 hours, as listed in the LCD specifications

The panel uses multipoint capacitive touch. The touch specifications list transmittance of at least 85% and hardness of 6H. They also specify a COF connection, an I²C controller interface and a Linux driver.

System and software

Item	Specification
CPU	Broadcom BCM2711, quad-core Cortex-A72 at 1.5 GHz
Graphics API	OpenGL ES 3.0
Memory	2 GB LPDDR4
Storage	Micro SD card, 32 GB / 64 GB options
OS	Raspberry Pi OS
Runtime	SENVAS Runtime
Development tool	SENVAS Designer, AI-based UI design

For more about screen development, see the SENVAS HMI technical overview.

Ports and power

Item	Specification
RS-232	1 channel
RS-485	3 channels
Ethernet	1 RJ45 port, 10/100/1000 Mbps
USB 2.0	2 ports
USB 3.0	2 ports
SD slot	1 Micro SD slot
Buzzer	Electronic buzzer
Input voltage	DC 12 to 28 V

The panel provides both Ethernet and serial interfaces. When connecting equipment, check the device’s communication settings and the software’s protocol support as well as the physical interface.

Dimensions and mounting

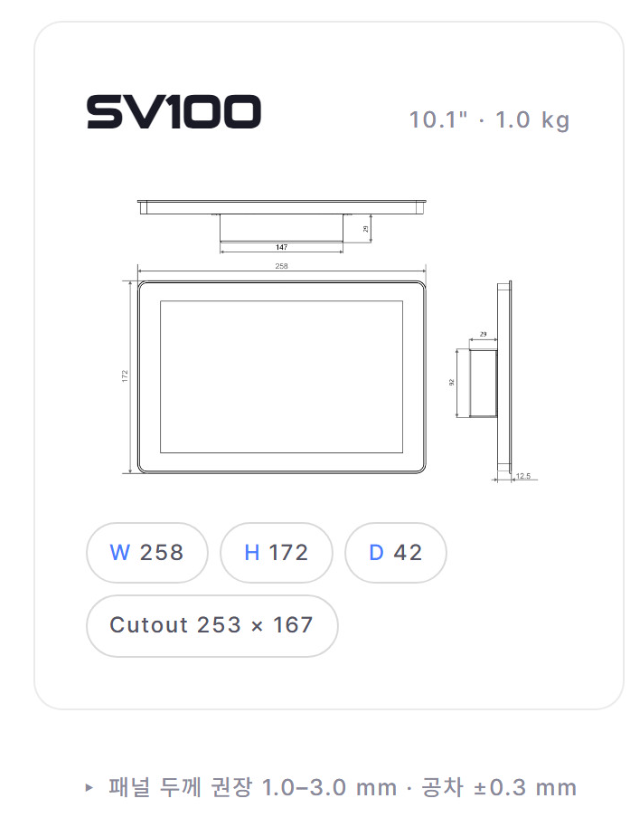

SV100 dimensions and panel cutout

Item	Specification
Overall size, W × H × D	258 × 172 × 42 mm
Weight	Approximately 1,000 g
Panel cutout, W × H	253 × 167 mm
Recommended panel thickness	1.0 to 3.0 mm
Tolerance stated in the drawing note	±0.3 mm

Use the 253 × 167 mm cutout dimensions for panel machining, rather than the overall dimensions. Allow room for rear connectors and cables in addition to the enclosure’s 42 mm depth.

How it differs from the SV070

The SV100 has a larger screen and a higher resolution than the SV070. Its overall size and cutout are also larger, so the two models cannot use the same panel opening. The SV100 is rated at 250 cd/m², compared with 400 cd/m² for the SV070. The supplied materials list the same processor, memory, port configuration and input voltage for both models.

See the SENVAS touch panel overview for the product introduction.

Source

This article uses the supplied specification tables and mechanical drawings from the product listing.
